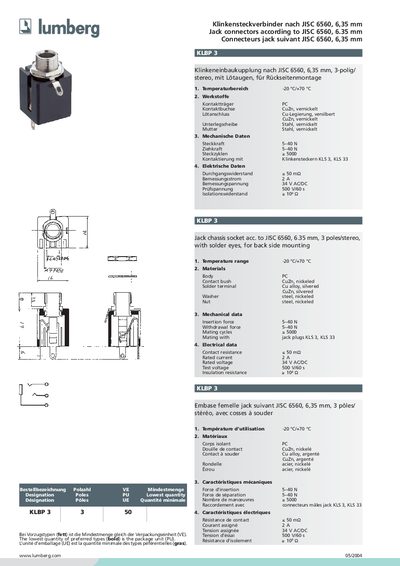

KLBP 3 is a 3-pole/stereo jack chassis socket acc. to JISC 6560, 6.35 mm, with solder eyes, for back side mounting. The socket has a temperature range of -20 °C/+70 °C.
The KLBP 3 is a 3‑pole, 6.35 mm jack connector designed for back‑side mounting. The datasheet lists its designation, minimum order quantity, and material composition such as CuZn‑nickel contacts and silver‑plated solder terminals.
Key specifications include a temperature range of –20 °C to +70 °C, insertion and withdrawal forces of 5‑40 N, 5000 mating cycles, contact resistance up to 50 mΩ, a rated current of 2 A, a rated voltage of 34 V AC/DC, and a test voltage of 500 V for 60 s. This manual is written in German.
| Temperature range | -20 °C to +70 °C |
|---|---|
| Insertion force | 5‑40 N |
| Withdrawal force | 5‑40 N |
| Mating cycles | 5000 |
| Contact resistance | ≤ 50 mΩ |
| Rated current | 2 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | 10⁸ Ω |
| Contact material | CuZn, nickeled |
| Solder terminal material | Cu alloy, silvered |
| Washer material | Steel, nickeled |
| Nut material | Steel, nickeled |
