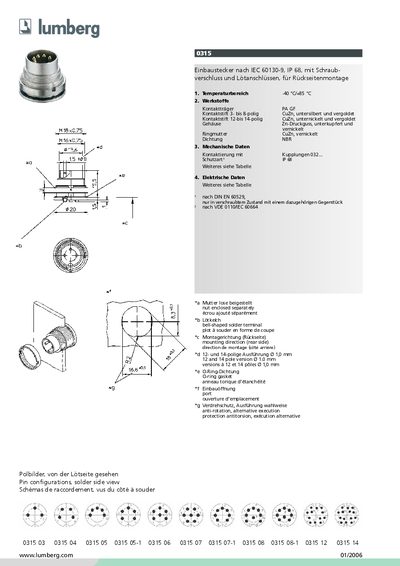

This document describes an Einbaustecker that complies with IEC 60130-9 standard. The product has an IP 68 protection rating and features a screw closure and solder connections. It is designed for rear panel mounting. The temperature range is -40°C to +85°C. The contact materials are copper-zinc with silver and gold plating. The housing is made of zinc die-cast, with copper and nickel plating. The sealing is provided by an NBR gasket. The product offers excellent mechanical and electrical performance.
The 0315 series is a rear‑mount circular connector compliant with IEC 60130‑9 and rated IP68 for protection against dust and water. It features a threaded joint (M18×0.75) and optional solder terminals for secure rear mounting.
Mechanical data include a zinc die‑cast housing, copper‑zinc ring nut, and NBR gasket. Electrical data list a temperature range of –40 °C to +85 °C and contact options of 3‑8 or 12‑14 pins made from copper‑zinc, pre‑silvered and gilded. This manual is written in German.
| Temperature range | -40 °C to +85 °C |
|---|---|
| Contact pins (3‑8) | 3 to 8 poles |
| Contact pins (12‑14) | 12 to 14 poles |
| Contact material | Copper‑zinc, pre‑silvered and gilded |
| Housing material | Zinc die‑cast, pre‑coppered |
| Ring nut material | Copper‑zinc, nickeled |
| Gasket material | NBR |
| Thread size | M18×0.75, nickeled |
It can be used from –40 °C up to +85 °C.
It is offered with either 3‑8 pins or 12‑14 pins.
The pins are made of copper‑zinc, pre‑silvered and gilded.
