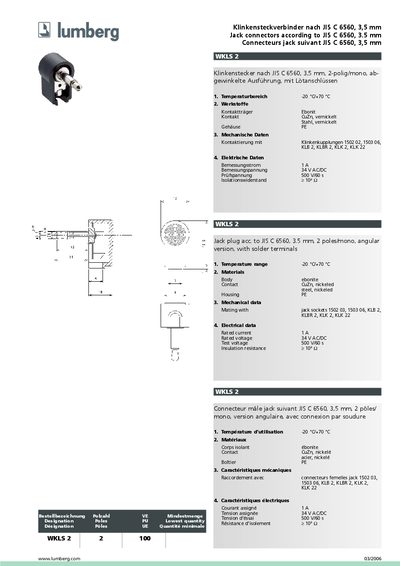

This document describes the features and characteristics of the Klinkensteckverbinder nach JIS C 6560, 3.5 mm connectors produced by Lumberg, including temperature range, materials, mechanical data, and electrical data.
The WKLS 2 is a 2‑pole mono jack connector (3.5 mm) designed according to JIS C 6560. It features an angular design with solder terminals and is available with ebonite body, CuZn nickeled contacts, and a PE housing.
The connector operates from –20 °C to +70 °C, supports a rated current of 1 A and a rated voltage of 34 V AC/DC. It is tested at 500 V for 60 s and has an insulation resistance of 210 MΩ. Mechanical compatibility includes mating with jack sockets 1502 03, 1503 06, KLB 2, KLBR 2, KLK 2, and KLK 22.
| Operating temperature range | -20 °C to +70 °C |
|---|---|
| Rated current | 1 A |
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V for 60 s |
| Insulation resistance | 210 MΩ |
It can be used from –20 °C up to +70 °C.
The connector is rated for a continuous current of 1 A.
It is rated for 34 V AC or DC.
It mates with jack sockets 1502 03, 1503 06, KLB 2, KLBR 2, KLK 2, and KLK 22.
