KLS 3 is a 3-pole stereo jack plug manufactured by Lumberg with nickel-plated copper contacts, ABS insulation, PP housing, PVC kink protection and 2A rated current.

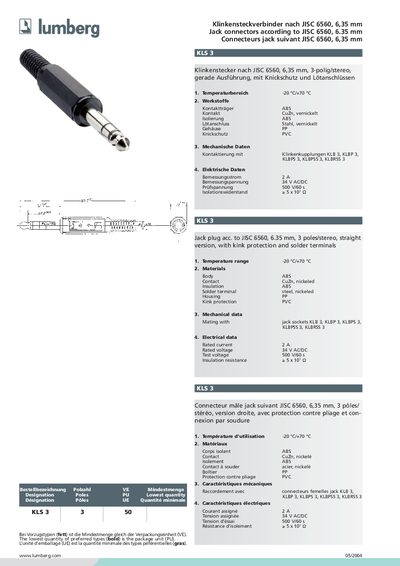

The KLS 3 3 50 jack connector from Lumberg is a 3‑pole stereo plug that meets the JISC 6560 standard for 6.35 mm jack connectors. It features a straight version with kink protection and solder terminals.
Key specifications include a temperature range of -20 °C to +70 °C, an ABS body, CuZn nickeled contacts, a PP housing, and PVC kink protection. Electrical data list a rated current of 2 A, a rated voltage of 34 V AC/DC, a test voltage of 500 V for 60 s, and an insulation resistance of 25×10⁷ Ω. This manual is written in German.
| Rated current | 2 A |
|---|---|
| Rated voltage | 34 V AC/DC |
| Test voltage | 500 V / 60 s |
| Insulation resistance | 25×10⁷ Ω |
| Temperature range | -20 °C to +70 °C |
| Body material | ABS |
| Contact material | CuZn, nickeled |
| Housing material | PP |
| Kink protection | PVC |
The connector is rated for a current of 2 A.
It can be used from –20 °C up to +70 °C.
The test voltage is 500 V applied for 60 seconds.
The body is made of ABS, and the contacts are CuZn that are nickeled.
