This document describes an RCA chassis socket, suitable for printed circuit boards. It features a wide temperature range, durable materials, and a high number of mating cycles.

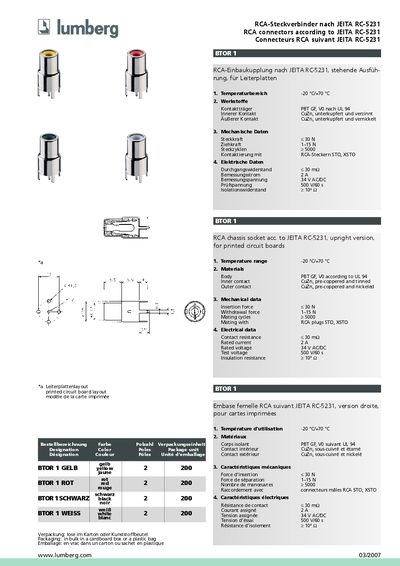

The BTOR 1 series provides upright RCA chassis sockets and plugs designed for printed circuit boards. The product is offered in four colour‑coded versions (yellow, red, black, white) and can be supplied in bulk packaging.
Key specifications include a temperature operating range of –20 °C to +70 °C, insertion force under 30 N, withdrawal force 1‑15 N, up to 25 000 mating cycles, a rated current of 2 A, and a rated voltage of 34 V AC/DC. Materials are PBT‑GF, VO (UL 94) for the body and CuZn contacts that are pre‑coppered and either tinned or nickeled.
| Operating temperature range | -20 °C to +70 °C |
|---|---|
| Rated voltage | 34 V AC/DC |
| Insulation resistance (test voltage) | 500 V/60 s |
The connector is rated for temperatures from –20 °C to +70 °C.
Insertion force is less than 30 N and withdrawal force is between 1 and 15 N.
