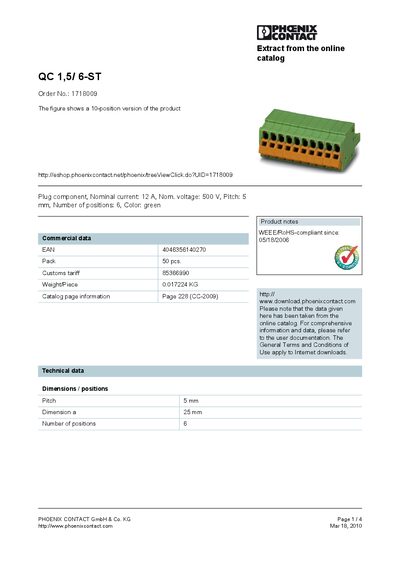

QC 1,5/ 6-ST is a plug component produced by PHXINCONTACT company. Its rated current is 12A, rated voltage is 500V, connection pitch is 5mm, and product color is green.
This document provides the key technical data for the Phoenix Contact QC 1,5/6-ST plug, including nominal current, voltage, pitch, number of positions, and colour. It also lists commercial details such as packaging quantity, weight per piece and ordering information.
Additional information covers rated surge and operating voltages, conductor cross‑section ranges, certification marks (CUL, UL) and compliance with WEEE/RoHS regulations. Contact details for Phoenix Contact Germany are included at the end of the sheet.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 500 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Color | green |
| Weight per piece | 0.017224 KG |
| Conductor cross‑section (AWG/kcmil) | 24‑16 |
| WEEE/RoHS compliance date | 05/18/2006 |
The QC 1,5/6-ST is rated for a nominal current of 12 A.
It has six positions.
The pitch of the plug is 5 mm.
Yes, it has been RoHS compliant since 05/18/2006.
