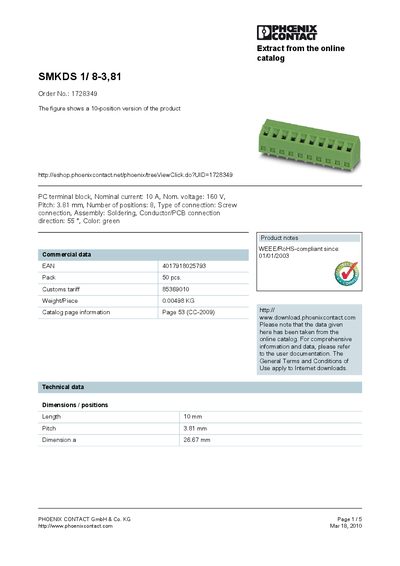

This document describes the features and characteristics of the PC terminal block SMKDS 1/ 8-3,81 from PHOENIX CONTACT, including nominal current, nominal voltage, and type of connection.
The SMKDS 1/8-3,81 is an 8‑position screw‑connection terminal block designed for 10 A nominal current and 160 V nominal voltage. It is intended for soldering assembly with a 3.81 mm pitch and is supplied in green color.
The handbook lists detailed technical specifications such as dimensions, tightening torque, surge voltage ratings, and approved certifications. It also includes information on available accessories like marker pens, marker cards, and a screwdriver, as well as drawing references for drilling and solder pad geometry.
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.81 mm |
| Number of positions | 8 |
| Length | 10 mm |
| Dimension a | 26.67 mm |
| Weight per piece | 0.00498 kg |
The terminal block is rated for a nominal current of 10 A.
It has 8 positions.
The pitch is 3.81 mm.
