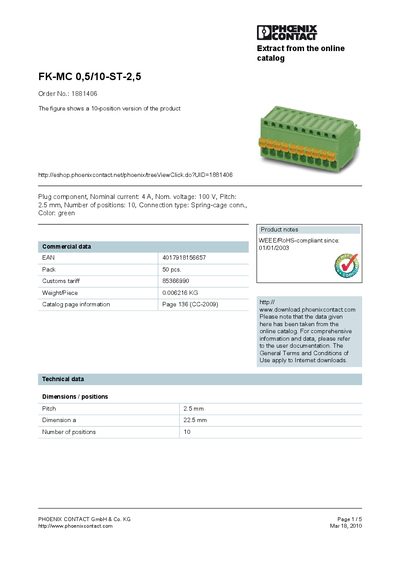

This is a PDF file of FK-MC 0,5/10-ST-2,5 product. It mainly introduces the product's features, specifications and other information.
The FK-MC 0,5/10-ST-2,5 is a 10‑position spring‑cage connector with a 2.5 mm pitch, rated for 4 A nominal current and 100 V nominal voltage. It is supplied in a green housing and complies with RoHS/WEEE regulations.
The sheet lists related accessories such as marker cards and screwdrivers, provides certification information (CB, CUL, UL, VDE‑PZI), and includes dimensional drawings and contact details for Phoenix Contact.
| Nominal current | 4 A |
|---|---|
| Nominal voltage | 100 V |
| Pitch | 2.5 mm |
| Number of positions | 10 |
| Color | green |
| Weight per piece | 0.006216 kg |
The connector is rated for a nominal current of 4 A.
It has 10 positions.
The pitch is 2.5 mm.
The order number is 1881406.
