PST 1,3/ 2-LV-5,0 is a plug produced by PHOENIX CONTACT. The plug has a rated current of 14A, a rated voltage of 250V, a pitch of 5mm, 2 positions, a black color and is soldered.
The PST 1,3/2-LV-5,0 is a 2‑position, 5 mm pitch connector rated for 14 A nominal current and 250 V nominal voltage. Technical data include a length of 10.8 mm, pin dimensions of 1.3 mm, and a weight of 0.000892 kg per piece.
Ordering details such as the EAN (4017918995041) and pack size (250 pcs) are listed, along with compliance information (WEEE/RoHS‑compliant since 07/02/2007) and certifications (UL, CUL). Full documentation can be downloaded from the Phoenix Contact website.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 2 |
| Length | 10.8 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.000892 kg |
| EAN | 4017918995041 |
| WEEE/RoHS compliance date | 07/02/2007 |
| Maximum load current | 13.5 A (depends on plug) |
The connector is rated for a nominal current of 14 A.
It has two positions.
The pitch is 5 mm.

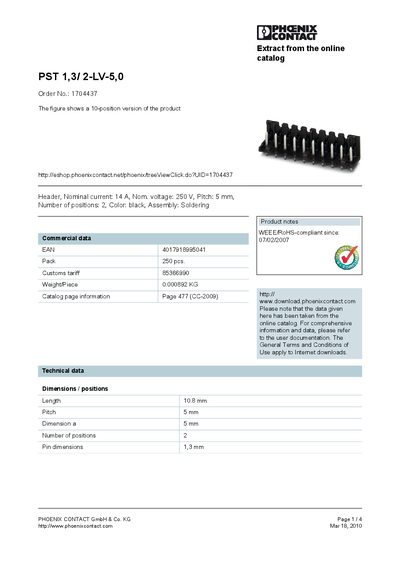

Full documentation is available at the Phoenix Contact download site.
