The product name is PST 1,3/ 6-LH-5,0, brand is PHOENIX CONTACT, model is 1704369. The product is a 6-pin connector with a rated current of 14A and a rated voltage of 250V. The socket diameter is 1.5mm.

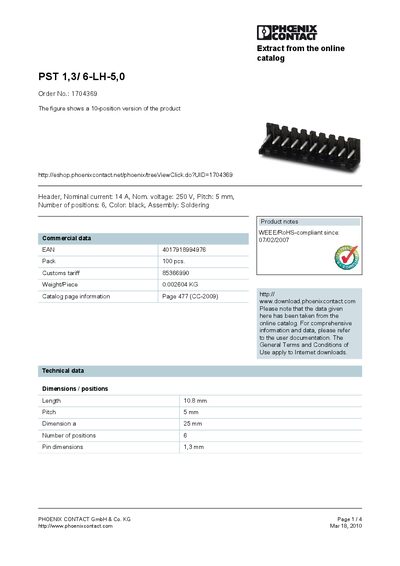

The PST 1,3/6-LH-5,0 is a 6‑position, 5 mm pitch connector from Phoenix Contact, intended for soldered assembly in industrial control and automation applications. The sheet provides key commercial data such as part number, EAN, packaging and weight.
Technical specifications include nominal current and voltage ratings, mechanical dimensions, material certifications and compliance information. For full wiring diagrams and detailed installation guidance, refer to the complete user documentation linked on the Phoenix Contact website.
| Nominal current | 14 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 6 |
| Color | black |
| Length | 10.8 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.002604 kg |
| EAN | 4017918994976 |
| WEEE/RoHS compliance date | 07/02/2007 |
| UL nominal current | 13.5 A (depends on plug) |
The connector is rated for a nominal current of 14 A.
It has six positions.
The pitch is 5 mm.
Each connector weighs 0.002604 kg.
