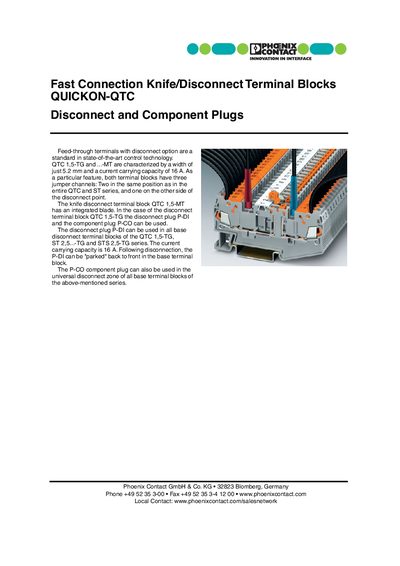

Fast Connection Knife/Disconnect Terminal Blocks QUICKON-QTC Disconnect and Component Plugs
The QUICKON‑QTC series provides fast‑connection knife and disconnect terminal blocks for control technology, featuring a compact 5.2 mm width and a 16 A current rating. Both the QTC 1,5‑MT and QTC 1,5‑TG variants include three jumper channels and optional plugs.
The handbook lists technical specifications, dimensions, approved ratings (UL, CSA/CUL), and the range of accessories such as end covers, plug‑in bridges, test adapters, and labeling strips. It also describes the compatible disconnect plug (P‑DI) and component plug (P‑CO).
| Width | 5.2 mm |
|---|---|
| Current carrying capacity | 16 A |
| Rated surge voltage | 6 kV |
| Overall dimensions | Width 5.2 mm, Length 764 mm, End‑cover width 2.2 mm |
| Height | 39.3 mm / 46.8 mm |
They are rated for a maximum load current of 16 A.
Width 5.2 mm, length 764 mm, end‑cover width 2.2 mm, and height 39.3 mm (or 46.8 mm).
