The GMSTBVA 2,5/ 5-G-7.62 is a connector from PHOENIX CONTACT. It has a nominal current of 12A, a nominal voltage of 400V, a pitch of 7.62mm, 5 positions, and a green color. It is assembled by soldering.
The GMSTBVA 2,5/5-G-7,62 is a green‑colored terminal block with a 7.62 mm pitch and five positions. It is rated for a nominal current of 12 A and a nominal voltage of 400 V (500 V for certain variants) and is supplied as a solder‑type assembly.

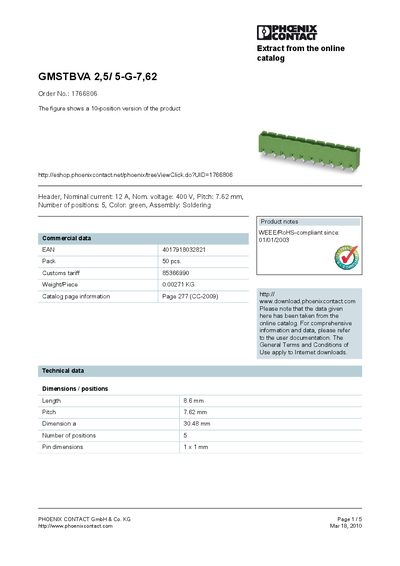

The document provides detailed technical specifications, dimensional drawings, accessory part numbers and compliance information such as WEEE/RoHS status. It also lists certifications (CB, CSA, CUL, GOST, UL, VDE‑PZI) and ordering details.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 400 V (500 V for some variants) |
| Pitch | 7.62 mm |
| Number of positions | 5 |
| Color | green |
| Assembly type | Soldering |
| Weight per piece | 0.00271 kg |
| EAN | 4017918032821 |
| WEEE/RoHS compliance date | 01/01/2003 |
The nominal current is 12 A.
It has five positions.
The pitch is 7.62 mm.
Yes, it has been RoHS compliant since 01/01/2003.
