MSTBT 2,5/ 3-ST-5,08 is a connector produced by PHOENIX CONTACT. It has a rated current of 12A, a rated voltage of 250V, a pitch of 5.08mm, 3 pins, a screw connection, and is green in color.
The MSTBT 2,5/3-ST-5,08 is a 3‑position terminal block with a 5.08 mm pitch, rated for 12 A and 250 V. It features a screw connection, green housing, and specified tightening torque of 0.5 Nm to 0.6 Nm. Technical data include rated voltages up to 320 V (III/2) and 630 V (II/2) and surge voltage ratings of 4 kV.

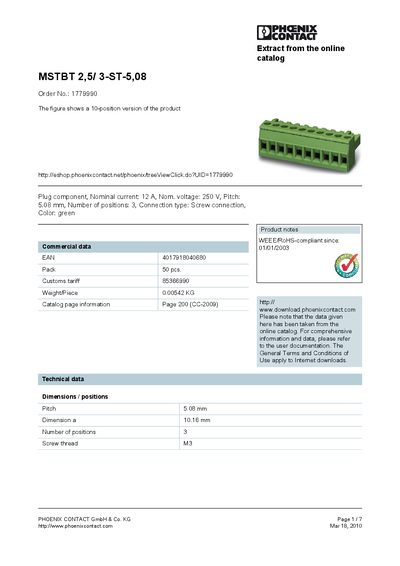

The handbook lists compatible accessories such as insertion bridges, cable housings, marker cards, and keying profiles, as well as certification approvals (CB, CSA, CUL, GOST, UL, VDE‑PZI). Ordering information and the manufacturer's address are also provided.
| Nominal current | 12 A |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5.08 mm |
| Number of positions | 3 |
| Connection type | Screw connection |
| Color | green |
| Certifications | CB, CSA, CUL, GOST, UL, VDE-PZI |
The terminal block is rated for a nominal current of 12 A.
The pitch of the MSTBT 2,5/3-ST-5,08 is 5.08 mm.
It is approved under CB, CSA, CUL, GOST, UL and VDE‑PZI standards.
