The document describes a plug component called MC 1,5/ 8-ST-3,5 with 8 positions and a nominal current of 8A. It features a screw connection with a pitch of 3.5mm and a rated voltage of 160V. It is suitable for conductor cross sections up to 1.5mm² and has a V0 flammability class.

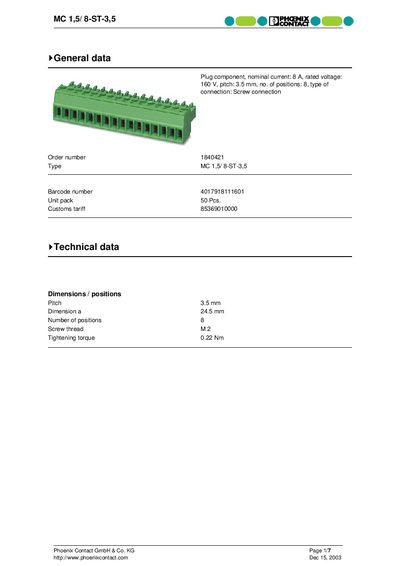

This handbook describes the MC 1,5/8-ST-3,5 screw‑terminal block, a plug component with a nominal current of 8 A, rated voltage of 160 V, and a 3.5 mm pitch. It lists the basic dimensions, connection type, and required tightening torque.
Additional sections cover certificates, drawing references, accessory part numbers, related product variants, and contact information for Phoenix Contact. The document is intended for engineers and purchasing personnel who need detailed specifications and ordering details.
| Nominal current | 8 A |
|---|---|
| Rated voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 8 |
| Dimension a | 24.5 mm |
| Screw thread | M2 |
| Tightening torque | 0.22 Nm |
| Inflammability class | UL 94 |
| AWG/kcmil | 30‑14 |
The terminal block is rated for 8 A.
The pitch is 3.5 mm.
It has 8 positions.
Tightening torque is 0.22 Nm.
