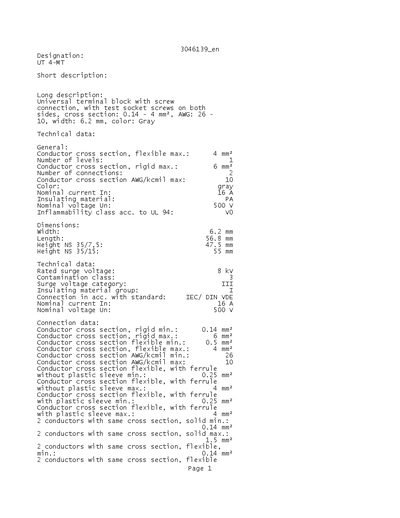

This document describes the features and characteristics of the UT 4-MT universal terminal block, including reliable screw connection, test socket screws, applicable wire cross-section range, dimensions, etc.
The UT 4-MT is a universal terminal block with screw connection and test socket screws on both sides. It supports conductor cross sections from 0.14 mm² to 4 mm² (flexible) or up to 6 mm² (rigid) and is available in a gray PA‑insulated housing.
Technical data include a nominal current of 16 A, nominal voltage of 500 V, rated surge voltage of 8 kV, and UL‑94 V0 inflammability class. Physical dimensions are 6.2 mm width, 56.8 mm length, with heights of 47.5 mm (NS 35/7.5) or 55 mm (NS 35/15). The screw thread is M3 with a minimum tightening torque of 0.6 Nm.
| Nominal current | 16 A |
|---|---|
| Nominal voltage | 500 V |
| Conductor cross section flexible max | 4 mm² |
| Conductor cross section rigid max | 6 mm² |
| Width | 6.2 mm |
| Length | 56.8 mm |
| Height (NS 35/7.5) | 47.5 mm |
| Height (NS 35/15) | 55 mm |
| Rated surge voltage | 8 kV |
| Contamination class | 3 |
| Surge voltage category | III |
| Insulating material | PA |
| Inflammability class (UL‑94) | V0 |
| Screw thread | M3 |
| Minimum tightening torque | 0.6 Nm |
The nominal current is 16 A.
The terminal block is rated for 500 V.
It is 6.2 mm wide, 56.8 mm long, with heights of 47.5 mm (NS 35/7.5) or 55 mm (NS 35/15).
It uses a screw connection with an M3 screw thread.
