This document describes the features and characteristics of the product PST 1.3/3-5.0 by PHOENIX CONTACT GmbH & Co. KG, including header, nominal current, nominal voltage, pitch, number of positions, color, and assembly information.

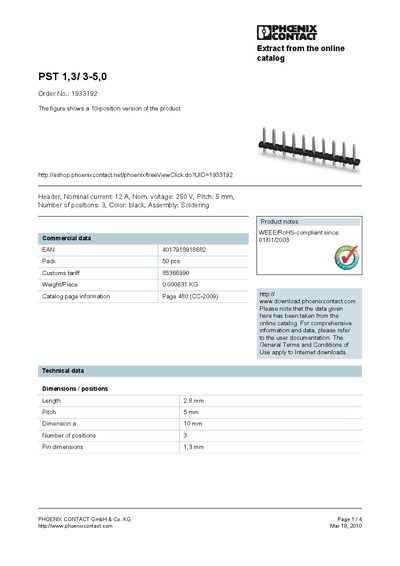

The PST 1,3/3-5,0 is a 3‑position, 5 mm pitch connector from Phoenix Contact, intended for soldered assembly. It appears in the online catalog (order no. 1933192) and is RoHS/WEEE‑compliant.
The sheet provides technical data such as nominal current 12 A, nominal voltage 250 V, dimensions, weight, and certification details. For full documentation see the user manuals on the Phoenix Contact website.
| Nominal current | 12 A (depends on the plug used) |
|---|---|
| Nominal voltage | 250 V |
| Pitch | 5 mm |
| Number of positions | 3 |
| Length | 2.8 mm |
| Dimension a | 10 mm |
| Pin dimensions | 1.3 mm |
| Weight per piece | 0.000631 kg |
| EAN | 4017918918682 |
| Package quantity | 50 pcs |
The connector is rated for a nominal current of 12 A (depends on the plug used).
The pitch of the connector is 5 mm.
It has three positions.
The connector is supplied in packs of 50 pieces.
