EECC1111 is a power entry module from Schneider Electric, supporting C20 interface, rated current 16A/250VAC, rated voltage 60Hz, protection class IP40, suitable for protection class I equipment

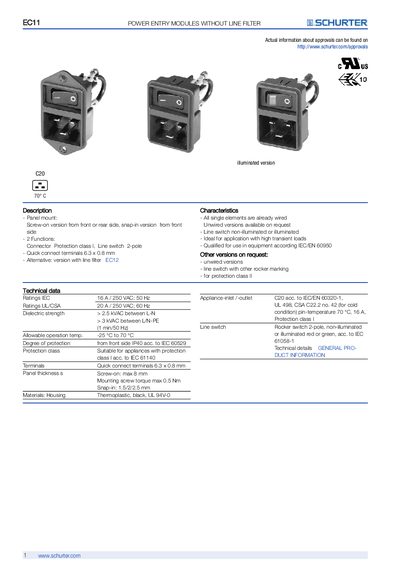

This handbook describes SCHURTER's EC11 power entry modules that omit a line filter. The modules are panel‑mountable, available in screw‑on, snap‑in, and illuminated versions, and are suited for equipment with high transient loads and IEC/EN 60950 compliance.
Technical data include current ratings, dielectric strength, temperature range, protection class, and mechanical dimensions. Variant tables list order numbers for different illumination colors, mounting styles, and internal wiring options.
| IEC current rating | 16 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA current rating | 20 A / 250 VAC, 60 Hz |
| Dielectric strength (L‑N) | 2.5 kVAC |
| Dielectric strength (L‑N‑PE) | 3 kVAC (1 min/50 Hz) |
| Operating temperature range | -25 °C to 70 °C |
| Quick‑connect terminal size | 6.3 × 0.8 mm |
| Mounting screw torque | max 0.5 Nm |
| Housing material | Thermoplastic, UL 94V‑0 |
The EC11 is rated for 16 A / 250 VAC at 50 Hz under IEC, and 20 A / 250 VAC at 60 Hz under UL/CSA.
The module can operate from –25 °C up to 70 °C.
