C20F line filter with inlet for high current is suitable for standard and medical applications and features a compact design with optimal electromagnetic shielding.

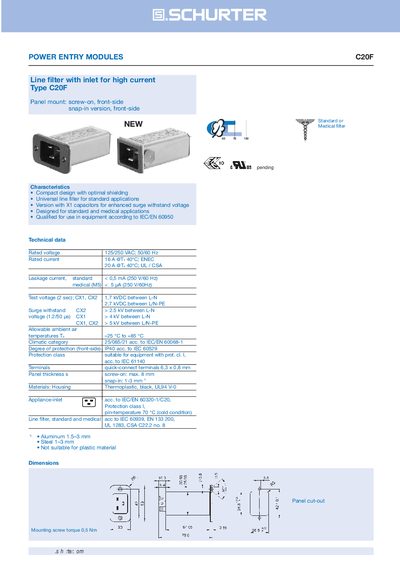

The C20F Power Entry Module is a line filter designed for both standard and medical applications. It features a compact design with optimal shielding and is qualified for IEC/EN 60950 equipment.
The document provides rated voltage, current, leakage current, surge withstand values, dimensions, mounting details, and order numbers for both screw‑on and snap‑in versions, as well as optional capacitor classes.
| Rated voltage | 125/250 VAC; 50/60 Hz |
|---|---|
| Rated current (ENEC) | 16 A @ 40 °C |
| Rated current (UL/CSA) | 20 A @ 40 °C |
| Leakage current (standard) | < 0.5 mA (250 V/60 Hz) |
| Degree of protection (IP rating) | IP40 |
| Ambient temperature range | -25 °C to +85 °C |
The C20F is rated for 125/250 VAC at 50/60 Hz.
It has a front‑side protection class of IP40.
The module measures 10.3 mm × 38 mm (panel cut‑out).
