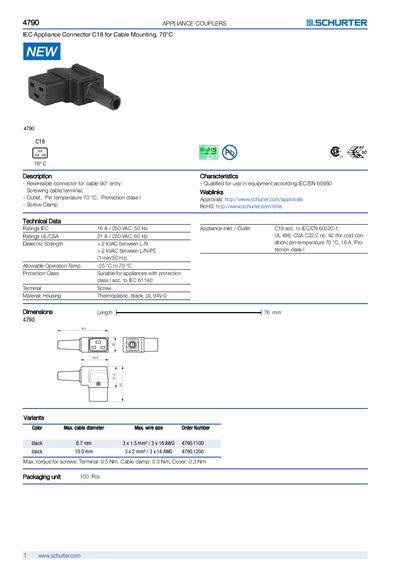

This is a 70°C IEC Appliance Connector C19 for Cable Mounting which conforms to IEC/EN 60950 standard. Its rated current is 16A, rated voltage is 250VAC, 50Hz, the maximum insulation strength is 2kVAC between L-N, 2kVAC between L/N-PE (1 min/50 Hz), and the allowable operating temperature is -25 °C to 70 °C.
The IEC Appliance Connector C19 is a rewireable connector designed for 90° cable entry and qualified for use in equipment according to IEC/EN 60950. It features a screw‑clamp terminal, a black thermoplastic housing (UL 94V‑0) and is RoHS compliant.
Technical data include IEC ratings of 16 A/250 V at 50 Hz, UL/CSA ratings of 21 A/250 V at 60 Hz, dielectric strength over 2 kVAC, pin temperature up to 70 °C, and an operating temperature range of –25 °C to 70 °C. The connector length is 76 mm, and variants are offered with cable diameters of 8.7 mm or 10.0 mm and corresponding wire sizes. Maximum screw torques are 0.5 Nm for the terminal and 0.3 Nm for the cable clamp and cover.
| IEC Rating | 16 A / 250 V, 50 Hz |
|---|---|
| UL/CSA Rating | 21 A / 250 V, 60 Hz |
| Dielectric Strength | > 2 kVAC between L‑N |
| Pin Temperature | 70 °C |
| Allowable Operating Temperature | -25 °C to 70 °C |
| Protection Class | Suitable for appliances with protection class per IEC 61140 |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Length | 76 mm |
| Maximum Cable Diameter (variant) | 8.7 mm |
| Maximum Torque (terminal) | 0.5 Nm |
The connector has a length of 76 mm.
