This document introduces an appliance connector C14 or C18, suitable for PCB mounting. It has a temperature limit of 70°C and protection class I or II.
The GSP1 appliance couplers are IEC‑compliant C14/C18 connectors designed for panel‑mount or PCB mounting applications. They feature a ground terminal with quick‑connect contacts and optional solder terminals, and are suitable for appliances with protection class I or II.

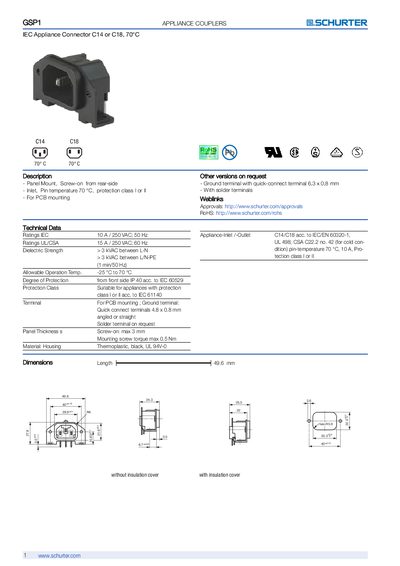

The handbook lists electrical ratings (10 A / 250 V 50 Hz IEC, 15 A / 250 V 60 Hz UL/CSA), dielectric strength (> 3 kVAC), operating temperature range (‑25 °C to 70 °C), IP40 protection, and mechanical details such as dimensions (49.6 mm length) and mounting torque (max 0.5 Nm). Approvals and RoHS compliance are also included.
| Current rating (IEC) | 10 A @ 250 V, 50 Hz |
|---|---|
| Current rating (UL/CSA) | 15 A @ 250 V, 60 Hz |
| Dielectric strength | > 3 kVAC between L‑N and L/N‑PE |
| Operating temperature range | -25 °C to 70 °C |
| IP rating | IP40 |
| Protection class | Class I or II |
| Length | 49.6 mm |
| Mounting screw torque | max 0.5 Nm |
| Housing material | Thermoplastic, black, UL 94V‑0 |
It is rated for 10 A at 250 V, 50 Hz according to IEC specifications.
The coupler can operate from –25 °C up to 70 °C.
The device has an IP40 rating.
