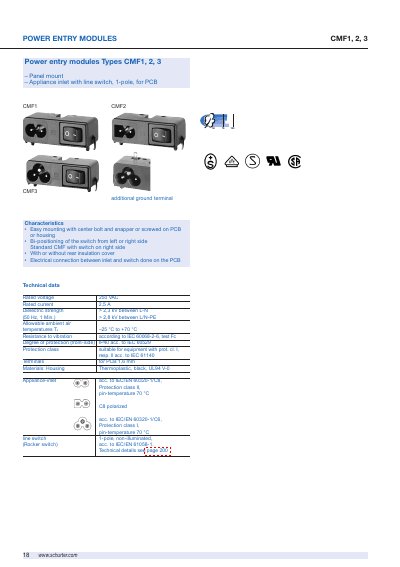

CMF1, 2, 3 power entry modules are panel mount appliance inlets with 1-pole line switch for PCB. The modules have easy mounting, bi-positioning of the switch from left or right side, with or without rear insulation cover, electrical connection between inlet and switch done on the PCB.
This handbook describes the Schurter CMF1, CMF2 and CMF3 power entry modules, which are panel‑mount appliance inlets with a 1‑pole line switch. It covers easy mounting options, bi‑positioning of the switch, optional rear insulation cover, and the electrical connection performed on the PCB.
Technical data such as rated voltage, current, dielectric strength, temperature range, protection class, material specifications and order numbers are listed, together with mounting diagrams for the different module types. This manual is written in German.
| Rated voltage | 250 VAC |
|---|---|
| Rated current | 2.5 A |
| Dielectric strength (L‑N) | > 2.3 kV (50 Hz, 1 min) |
| Allowable ambient temperature | -25 °C to +70 °C |
| Degree of protection (front side) | IP40 |
| Housing material | Thermoplastic, black, UL94 V‑0 |
| Appliance inlet C8 (Protection class II) | Pin temperature 70 °C |
| Line switch type | 1‑pole, non‑illuminated rocker switch |
The modules are rated for 250 VAC.
They can operate from –25 °C up to +70 °C.
The front side has a degree of protection of IP40.
The housing is made of black thermoplastic that meets UL94 V‑0 standards.
