PPCBB 5 x 20 mm is a fuse holder from Schurter. It is suitable for 5 x 20 mm fuses for household appliances.

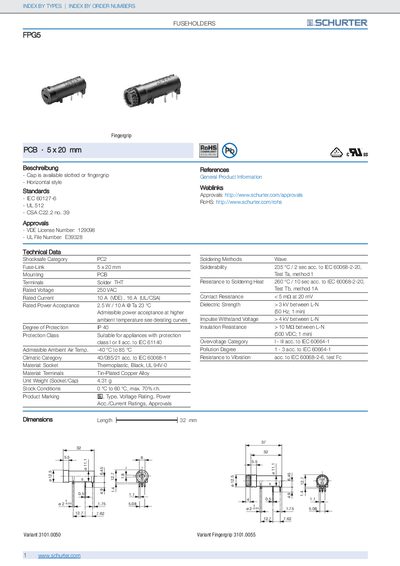

The FPG5 series from SCHURTER offers both slotted and finger‑grip fuseholder types for PCB mounting (5 × 20 mm). Variants are identified by order numbers 3101.0050 (slotted) and 3101.0055 (fingergrip) and are available in white or grey on request.
Technical data include a rated voltage of 250 VAC, rated currents of 10 A (VDE) and 16 A (UL/CSA), IP40 protection, and compliance with IEC, UL, CSA and VDE approvals. Materials are a thermoplastic socket (UL 94V‑0) and tin‑plated copper alloy terminals, with a compact 32 mm length and a maximum operating temperature range of –40 °C to 85 °C.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 10 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance | 2.5 W/10 A @ 23 °C |
| Contact Resistance | < 5 mΩ at 20 mV |
| Dielectric Strength | > 3 kV (L‑N, 50 Hz, 1 min) |
| Impulse Withstand Voltage | > 4 kV (L‑N) |
| Degree of Protection | IP 40 |
| Insulation Resistance | > 10 MΩ (L‑N, 500 VDC, 1 min) |
| Overvoltage Category | I‑Ill (IEC 60664‑1) |
| Ambient Temperature Range | -40 °C to 85 °C |
| Socket Material | Thermoplastic, Black, UL 94V‑0 |
| Terminal Material | Tin‑Plated Copper Alloy |
| Length | 32 mm |
The fuseholder is rated for 10 A according to VDE and 16 A according to UL/CSA standards.
It has a degree of protection of IP 40.
It can be used in ambient temperatures from –40 °C up to 85 °C.
