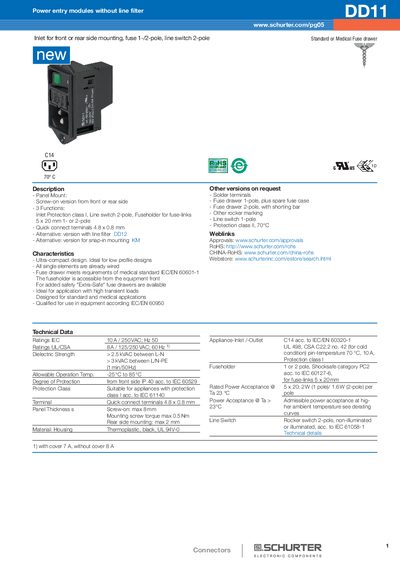

This document describes the features and characteristics of the power entry module DD11 without line filter, including panel mount, multiple functions, ultra-compact design, suitable for low profile designs, etc.
The SCHURTER DD11 is an ultra‑compact power entry module designed for front or rear side mounting. It offers a choice of 1‑ or 2‑pole fuse drawers, line switches and quick‑connect terminals, and meets IEC/EN 60601‑1 medical standards as well as IEC/EN 60950 safety requirements.
The handbook provides detailed technical data, including ratings, dielectric strength, protection class, temperature range, mounting torque and dimensions. Variants such as illuminated fuse drawers and snap‑in mounting versions are listed with their order numbers.
| Ratings IEC | 10 A / 250 V |
|---|---|
| Dielectric Strength | > 2.5 kVAC between L‑N |
| Operating Temperature Range | -25 °C to 85 °C |
| Mounting Screw Torque | max 0.5 Nm |
| Terminal Size | 4.8 × 0.8 mm (quick‑connect) |
| Rated Power Acceptance | 2 W (1‑pole) / 1.6 W (2‑pole) |
With a cover the module is rated for 7 A, and without a cover it is rated for 8 A.
The module can operate from –25 °C up to 85 °C.
