KKPP (Switch) is a power entry module from Schurter with a line switch, suitable for 1- and 2-pole.

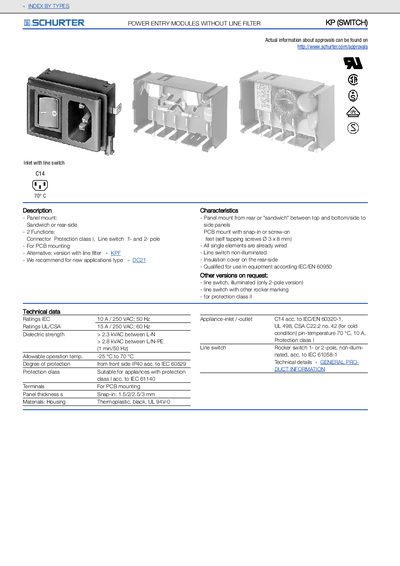

The SCHURTER KP (SWITCH) is a power entry module without a line filter, designed for panel‑mount or PCB‑mount applications. It offers 1‑ or 2‑pole line switching, optional illumination, and complies with IEC/EN 60950 safety standards.
Key data include IEC ratings of 10 A / 250 VAC (50 Hz), UL/CSA ratings of 15 A / 250 VAC (60 Hz), dielectric strength up to 2.8 kVAC, operating temperature from –25 °C to 70 °C, and a protection class II (P40). The module is available in snap‑in or screw‑on mounting styles with various panel thicknesses.
| IEC rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA rating | 15 A / 250 VAC, 60 Hz |
| Dielectric strength (L‑N) | 2.3 kVAC (1 min/50 Hz) |
| Dielectric strength (L‑N‑PE) | 2.8 kVAC (1 min/50 Hz) |
| Operating temperature range | -25 °C to 70 °C |
| Degree of protection | P40 (IEC 60529) |
| Protection class | Class II (IEC 61140) |
| Panel thickness options | 1.5 mm / 2 mm / 2.5 mm / 3 mm |
The module is rated for 10 A at 250 VAC with a frequency of 50 Hz according to IEC standards.
The module can operate from –25 °C up to 70 °C.
It complies with protection class II as defined in IEC 61140.
The line switch is available in 1‑pole or 2‑pole configurations, non‑illuminated.
