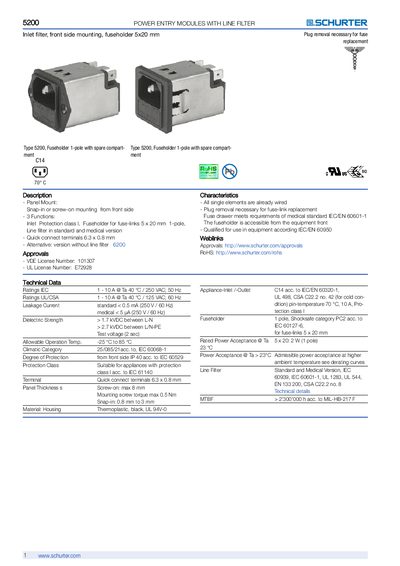

This document describes a power entry module with a line filter. The module features a front-side mounted inlet filter and fuseholder for 5x20 mm fuse-links. It has characteristics such as panel mount, 3 functions, quick connect terminals, and an alternative version without a line filter.
The Schurter 5200 series offers front‑side panel‑mount power entry modules with an integrated line filter. They are available in standard and medical versions and support both snap‑in and screw‑on mounting styles.
Key data include a rated current of 1‑10 A, leakage current below 0.5 mA (standard) or 5 µA (medical), dielectric strength over 1.7 kVDC, operating temperature from –25 °C to 85 °C, IP40 protection, and quick‑connect terminals sized 6.3 × 0.8 mm. Approvals cover VDE (101307) and UL (72928).
| Rated Current (IEC) | 1‑10 A @ Ta 40 °C / 250 VAC; 50 Hz |
|---|---|
| Rated Current (UL/CSA) | 1‑10 A @ Ta 40 °C / 125 VAC; 60 Hz |
| Leakage Current (standard) | < 0.5 mA (250 V / 60 Hz) |
| Leakage Current (medical) | < 5 µA (250 V / 60 Hz) |
| Dielectric Strength (L‑N) | > 1.7 kVDC |
| Dielectric Strength (L/N‑PE) | > 2.7 kVDC |
| Operating Temperature | -25 °C to 85 °C |
| Degree of Protection | IP40 (front side) |
| Terminal Type | Quick‑connect 6.3 × 0.8 mm |
| Panel Thickness (Screw‑on) | max 8 mm |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
The module can be mounted from the front side using either snap‑in or screw‑on mounting.
It is suitable for appliances with protection class I according to IEC 61140.
