The 4784 C15 120°C is a rewireable appliance plug from Schneider Electric. It is suitable for environments that require 10A of current and 250VAC of voltage. It can connect to cables with a maximum diameter of 2.5mm² and 18AWG. The maximum allowable operating temperature is 120°C.

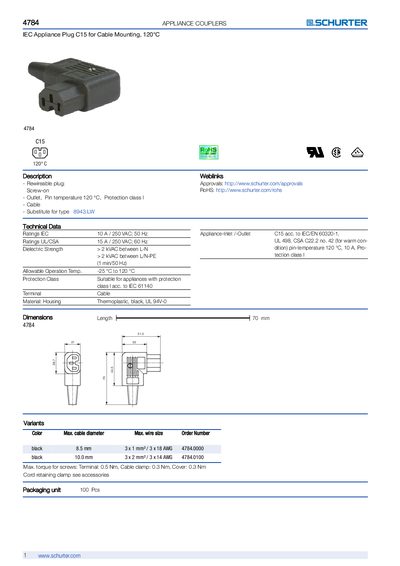

The SCHURTER 4784 series are re‑wireable IEC C15 appliance couplers designed for cable mounting with a maximum pin temperature of 120 °C. They are suitable for appliances requiring protection class I according to IEC 61140 and meet RoHS and UL/CSA approvals.
Key technical data include IEC and UL/CSA current ratings, dielectric strength, operating temperature range, dimensions, and available variants with different cable diameters and wire sizes. The document also lists torque values for assembly screws and packaging information.
| IEC Rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 15 A / 250 VAC, 60 Hz |
| Dielectric Strength | > 2 kV AC between L‑N and L/N‑PE (1 min/50 Hz) |
| Operating Temperature Range | -25 °C to 120 °C |
| Pin Temperature | 120 °C |
| Maximum Cable Diameter (black variant) | 8.5 mm |
| Maximum Cable Diameter (other variant) | 10.0 mm |
| Maximum Wire Size (black variant) | 3×1 mm? / 3×18 AWG |
| Maximum Torque for Screws | Terminal 0.5 Nm, Cable clamp 0.3 Nm, Cover 0.3 Nm |
The IEC rating is 10 A at 250 VAC, 50 Hz.
It can operate from –25 °C up to 120 °C.
The UL/CSA rating is 15 A at 250 VAC, 60 Hz.
