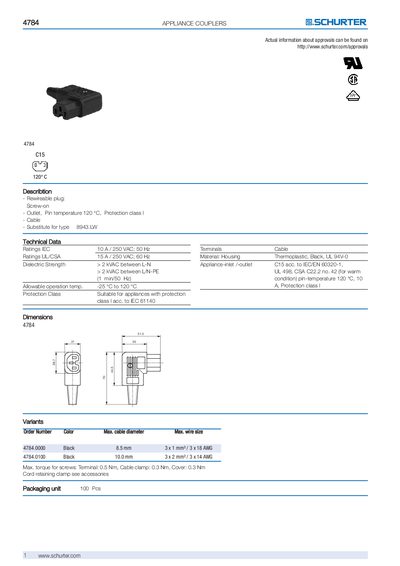

This product is a rewireable plug from the 4784 series of Schurter. It is a type of appliance connector that can withstand a temperature of 120°C and a rated current of 10A/250VAC; 50Hz. Rated current is 15A/250VAC; 60Hz.
The SCHURTER 4784 appliance couplers are rewireable plug connectors designed for use with appliances up to 120 °C. They feature a screw‑on design, a protection class | rating, and are supplied in black thermoplastic housing (UL 94V‑0).
Key specifications include IEC rating 10 A/250 V, UL/CSA rating 18 A/250 V, dielectric strength over 2 kVAC, and operating temperature range from –25 °C to 120 °C. Two variants are offered with different cable diameters and wire sizes, and the couplers are packaged in units of 100 pieces.
| IEC Rating | 10 A / 250 V |
|---|---|
| UL/CSA Rating | 18 A / 250 V |
| Operating Temperature Range | -25 °C to 120 °C |
| Material | Thermoplastic, Black, UL 94V‑0 |
| Dielectric Strength | > 2 kVAC (L‑N, L‑PE) |
| Maximum Cable Diameter (variant 4784.0000) | 8.5 mm |
| Maximum Cable Diameter (variant 4784.0100) | 10.0 mm |
The IEC rating is 10 A at 250 V.
It can operate from –25 °C up to 120 °C.
The housing is made of black thermoplastic that meets UL 94V‑0 standards.
The dielectric strength is greater than 2 kVAC between L‑N.
