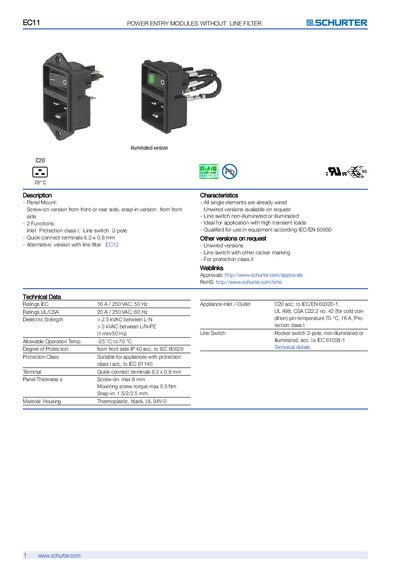

SCHURTER EC11 Power Entry Module Without Line Filter Product Data Sheet
The SCHURTER EC11 series provides panel‑mount power entry modules without line filter. Available in screw‑on, snap‑in and illuminated versions, the modules feature a 2‑pole line switch, quick‑connect terminals (6.3 × 0.8 mm) and are qualified for IEC/EN 60950 equipment.
Technical specifications include IEC rating of 16 A/250 VAC (50 Hz), UL/CSA rating of 20 A/250 VAC (60 Hz), dielectric strength up to 3 kVAC, operating temperature from –25 °C to 70 °C, and IP40 protection. Various colour and mounting options are offered, with part numbers listed for each variant.
SCHURTER EC11 specifications
| IEC Rating | 16 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 20 A / 250 VAC, 60 Hz |
| Dielectric Strength L‑N | > 2.5 kVAC |
| Operating Temperature | -25 °C to 70 °C |
| Degree of Protection | IP40 |
| Terminal Type | Quick connect 6.3 × 0.8 mm |
| Panel Thickness (Screw‑on) | max 8 mm |
| Material | Thermoplastic, black, UL 94V‑0 |
Source: SCHURTER EC11 Power Entry Module Without Line Filter Product Data Sheet
All SCHURTER EC11 documents by type
Questions answered in these manuals
What is the IEC current rating of the EC11 module?
The EC11 module is rated for 16 A at 250 VAC under IEC specifications.
From: SCHURTER EC11 Power Entry Module Without Line Filter Product Data Sheet
What dielectric strength does the EC11 provide between line and neutral?
It offers a dielectric strength greater than 2.5 kVAC between L and N.
From: SCHURTER EC11 Power Entry Module Without Line Filter Product Data Sheet
What are the IEC and UL/CSA current ratings for the EC11 module?
The EC11 is rated for 16 A / 250 VAC at 50 Hz under IEC, and 20 A / 250 VAC at 60 Hz under UL/CSA.
From: SCHURTER EC11 Power Entry Modules Without Line Filter Handbook
What is the allowable operating temperature range?
The module can operate from –25 °C up to 70 °C.
From: SCHURTER EC11 Power Entry Modules Without Line Filter Handbook
