This product is a distribution unit with 2 outlets, an inlet and an appliance plug. The inlet type is IEC Appliance Connector C14, the appliance plug type is Appliance Plug F, the input voltage is 250V, the rated current is 10A, the rated frequency is 50Hz, and the product is suitable for environments with a temperature range of -25 °C to 70 °C. The product is made of black plastic and has UL certification.

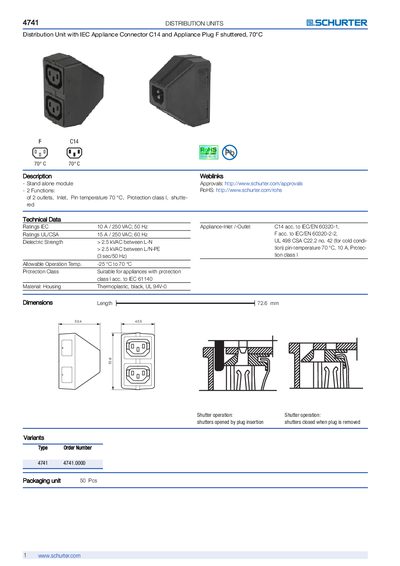

This handbook describes the Schurter 4741 Distribution Unit, a stand‑alone module with IEC appliance connector C14 and a shuttered appliance plug F. It lists approvals, RoHS compliance, and the two‑function design offering two outlets and an inlet.
Technical data include IEC and UL/CSA ratings, dielectric strength, allowable operating temperature, protection class, housing material, dimensions, and shutter operation. Variant information and packaging details are also provided.
| IEC Rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 15 A / 250 VAC, 60 Hz |
| Dielectric Strength | > 2.5 kV AC between L‑N |
| Allowable Operating Temperature | -25 °C to 70 °C |
| Protection Class | Suitable for appliances with protection class | |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Dimensions | Length 72.6 mm, Width 53.4 mm |
| Shutter Operation | Shutters open on plug insertion and close when plug is removed |
It is rated for 10 A at 250 VAC, 50 Hz according to IEC standards.
It is rated for 15 A at 250 VAC, 60 Hz under UL/CSA standards.
The unit can operate from –25 °C up to 70 °C.
The housing is made of black thermoplastic that meets UL 94V‑0 flame‑retardant standards.
