This document introduces the PC terminal block produced by PHOENIX CONTACT GmbH & Co. KG. The features of the product include: rated current 2A, rated voltage 160V, pitch 2.5mm, 3 positions, spring-cage connection, soldering assembly, green color, offset soldering legs in two rows.

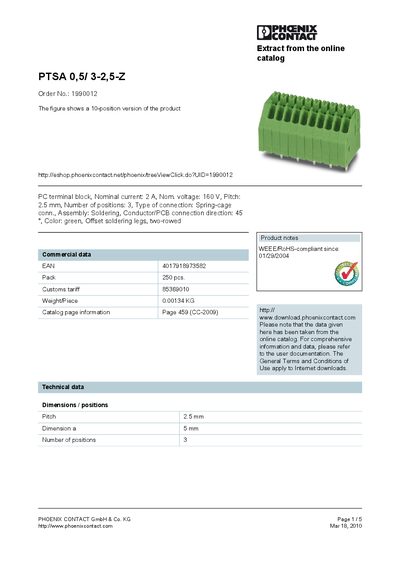

The PTSA 0,5/3-2,5-Z is a spring‑cage terminal block from Phoenix Contact, designed for soldering assembly with a 2.5 mm pitch. It is offered in multiple configurations, including 3‑position, 5‑position, and a 10‑position version.
Key data such as nominal current (2 A), nominal voltage (160 V), and mechanical dimensions are listed, along with certification information (CUL, UL, VDE‑PZI) and RoHS compliance since 01/29/2004. For full product details see the online catalog reference provided in the document.
| Nominal current | 2 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 2.5 mm |
| Number of positions (standard) | 3 |
| Color | green |
| Weight per piece | 0.00134 kg |
| RoHS compliance date | 01/29/2004 |
| Certifications | CUL, UL, VDE‑PZI |
The terminal block is rated for a nominal current of 2 A.
The pin pitch is 2.5 mm.
The standard version has 3 positions, with 5‑ and 10‑position versions also available.
Yes, it has been RoHS compliant since 01/29/2004.
