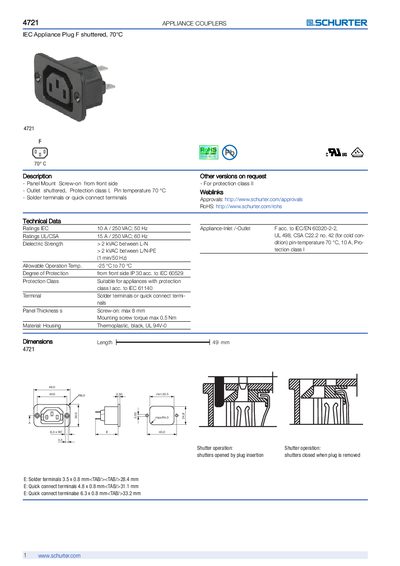

Schurter 4721 F 70°C IEC Appliance Plug F shuttered is used for appliances, with a shutter, protection class I, pin temperature 70 °C, can choose solder terminals or quick connect terminals.
The Schurter 4721 is a panel‑mount appliance coupler with a shuttered IEC plug, rated for 70 °C pin temperature. It offers screw‑on mounting, solder or quick‑connect terminals, and complies with IEC 60320‑2‑2, UL 498 and CSA standards.
Two variants are offered: a version with solder terminals (3.5 × 0.8 mm) and versions with quick‑connect terminals (4.8 × 0.8 mm or 6.3 × 0.8 mm). Accessories such as assorted covers and cord‑retaining kits are available, and the product is supplied in packaging units of 100 pieces.
| IEC Rating | 10 A / 250 VAC, 50 Hz |
|---|---|
| UL/CSA Rating | 15 A / 250 VAC, 60 Hz |
| Dielectric Strength | 2 kVAC between L‑N and L/N‑PE (1 min/50 Hz) |
| Operating Temperature | -25 °C to 70 °C |
| Degree of Protection | IP30 (front side) |
| Protection Class | Class I |
| Housing Material | Thermoplastic, black, UL 94V‑0 |
| Mounting Screw Torque | max 0.5 Nm |
The IEC rating is 10 A at 250 VAC, 50 Hz.
It can withstand 2 kVAC between line‑neutral and line‑neutral‑protective‑earth for 1 minute at 50 Hz.
The device complies with protection class I according to IEC 61140.
