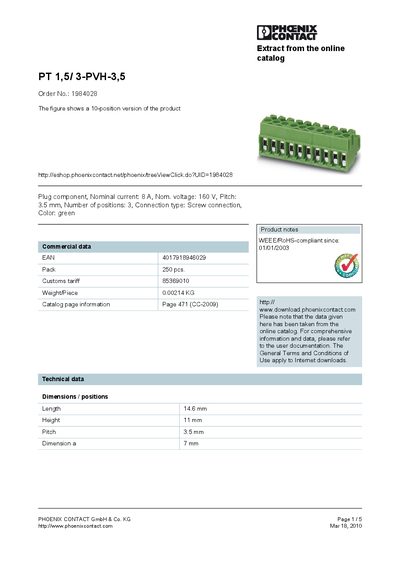

PT 1,5/ 3-PVH-3,5 is a plug component from PHOENIX CONTACT with a nominal current of 8 A, a nominal voltage of 160 V, a pitch of 3.5 mm, 3 positions and screw connection. It is green in color.
The PT 1,5/3-PVH-3,5 is a 3‑position screw‑connection terminal block with a 3.5 mm pitch, rated for 8 A and 160 V. It is supplied in a green (or black) housing and complies with RoHS/WEEE regulations since 01/01/2003.
The handbook provides detailed technical data, including dimensions, tightening torque, surge voltage ratings, and a list of compatible accessories such as marker cards and screwdrivers. Commercial information such as EAN, packaging, and weight per piece is also included.
| Nominal current | 8 A |
|---|---|
| Nominal voltage | 160 V |
| Pitch | 3.5 mm |
| Number of positions | 3 |
| Length | 14.6 mm |
| Height | 11 mm |
| Weight per piece | 0.00214 kg |
| RoHS/WEEE compliance date | 01/01/2003 |
The terminal block is rated for a nominal current of 8 A.
It has three positions.
The pitch is 3.5 mm.
A minimum torque of 0.22 Nm and a maximum of 0.25 Nm are recommended.
