Schurter PPGG22 is a fingergrip panel mount fuseholder with fixing nut and a rated current of 10 A (VDE) or 16 A (UL/CSA).

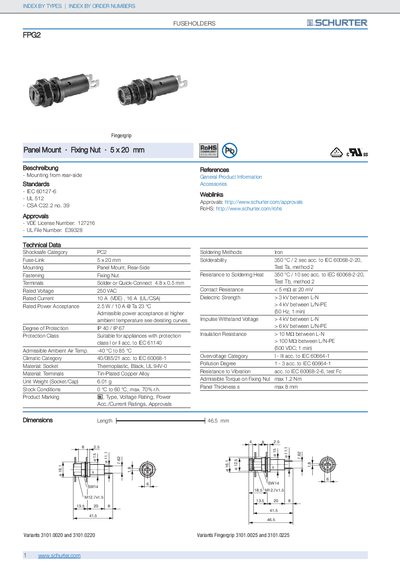

This leaflet lists the Schurter FPG2 Fingergrip fuseholder series, showing indexes by type and order number, and provides detailed technical data. It includes descriptions of mounting options, material construction, and environmental ratings, together with the applicable standards and approvals.
Variants are shown for slotted and finger‑grip versions, with IP40 or IP67 protection classes, and the document gives dimensions, torque limits, and derating curves for different ambient temperatures. Ordering numbers and packaging options are also included.
| Rated Voltage | 250 VAC |
|---|---|
| Rated Current | 10 A (VDE), 16 A (UL/CSA) |
| Rated Power Acceptance | 2.5 W/10 A @ 23 °C |
| Degree of Protection | IP40 / IP67 (variant dependent) |
| Admissible Ambient Air Temperature | -40 °C to 85 °C |
| Material (Socket) | Thermoplastic, Black, UL 94V‑0 |
| Material (Terminals) | Tin‑Plated Copper Alloy |
| Mounting | Panel mount with fixing nut, 5 × 20 mm |
| Admissible Torque on Fixing Nut | max 1.2 Nm |
Depending on the variant, the fuseholder is rated IP40 or IP67.
