PC 35 HC/ 4-STF-SH-15.00 is a connector product of PHOENIX CONTACT, with a rated current of 125 A, a rated voltage of 1000 V, an installation pitch of 15 mm, a wiring method of screw connection, and a green color.

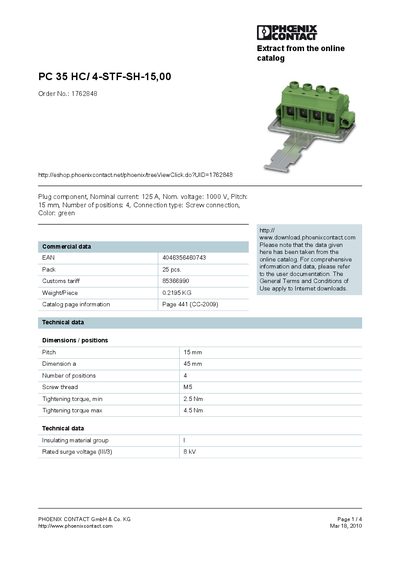

This leaflet provides technical data for the Phoenix Contact PC 35 HC/4-STF-SH-15,00 plug component, extracted from the online catalog. It includes ordering information, dimensions, connection type, and material details.
Key specifications such as nominal current, voltage, pitch, tightening torque, and weight are listed, along with diagrams showing current‑carrying capacity and dimensional drawings. Contact information for Phoenix Contact is also included.
| Nominal current | 125 A |
|---|---|
| Nominal voltage | 1000 V |
| Pitch | 15 mm |
| Number of positions | 4 |
| Screw thread | M5 |
| Tightening torque (min) | 25 Nm |
| Tightening torque (max) | 4.5 Nm |
| Weight per piece | 0.2195 KG |
| Dimension a | 45 mm |
| Color | green |
The nominal current rating is 125 A.
The connector has a pitch of 15 mm.
A minimum tightening torque of 25 Nm and a maximum of 4.5 Nm are specified.
It can be ordered using Order No. 1762848 from the Phoenix Contact e‑shop.
