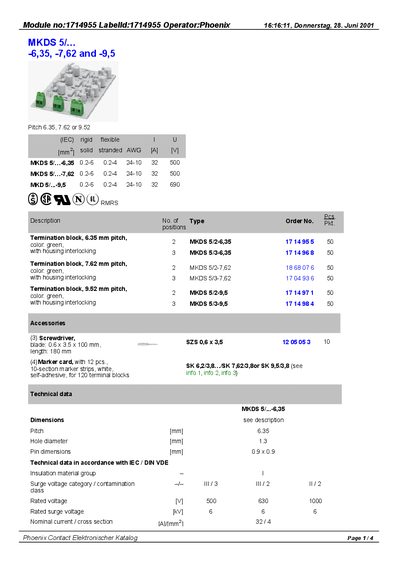

Introduces the characteristics of MKDS 5/… -6,35, -7,62 and -9,5, including wire diameter, color, number of pins, rated current, rated voltage, etc.
The Phoenix Contact MKDS 5 series handbook provides detailed information on the terminal blocks with 6.35 mm, 7.62 mm and 9.52 mm pitch. It includes descriptions, technical data, dimensions, electrical ratings and accessory listings such as screwdrivers and marker cards.
The document also contains approval data (UL, CSA), insulation material information, torque recommendations and installation notes, helping users select the correct block and ensure proper mounting and connection. This manual is written in German.
| Pitch | 6.35 mm, 7.62 mm, 9.52 mm |
|---|---|
| Hole diameter | 1.3 mm |
| Pin dimensions | 0.9 mm × 0.9 mm |
| Rated voltage | 500 V, 630 V, 1000 V |
| Rated surge voltage | 6 kV |
| Nominal current / cross‑section | 32 A / 4 mm² |
The MKDS 5 series is offered with pitches of 6.35 mm, 7.62 mm or 9.52 mm.
The rated voltage options are 500 V, 630 V and 1000 V.
The hole diameter is 1.3 mm.
It supports a nominal current of 32 A for a 4 mm² cross‑section.
