PTSA 0,5/ 9-2,5-Z is a terminal block manufactured by PHOENIX CONTACT, with a rated current of 2 A, a rated voltage of 160 V, a pin spacing of 2.5 mm, a pin count of 9, a connection type of spring-cage connector, an assembly type of soldering, a conductor/PCB connection direction of 45°, a color of green, offset soldering legs, and a two-row design

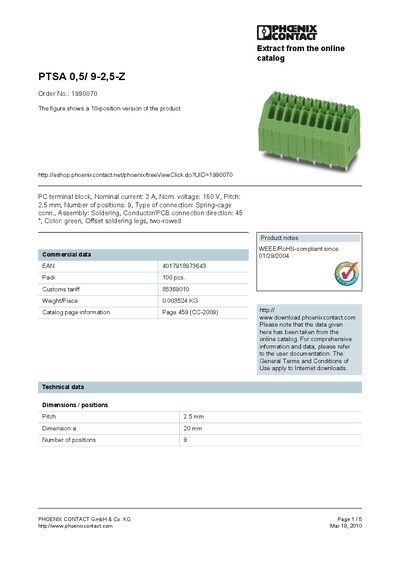

The PTSA 0,5/9-2,5-Z is a green, spring‑cage terminal block with a 2.5 mm pitch, rated for 2 A nominal current and 160 V nominal voltage. It is offered in a 9‑position version (10‑position shown in the figure) and is designed for solder‑on PCB mounting.
The handbook lists detailed technical data such as surge voltage ratings, dimensional drawings, derating diagrams, and certification information (CUL, UL, VDE‑PZI). Additional information includes weight per piece (0.003524 kg) and compliance with WEEE/RoHS standards.
| Nominal current | 2 A |
|---|---|
| Pitch | 2.5 mm |
| Number of positions | 9 |
| Color | green |
| Certifications | CUL, UL, VDE‑PZI |
| Weight per piece | 0.003524 kg |
The terminal block is rated for a nominal current of 2 A.
The pitch between pins is 2.5 mm.
The standard version has 9 positions, with a 10‑position version shown in the figure.
It is certified according to CUL, UL, and VDE‑PZI standards.
