PST 1,3/ 5-5,0 is a connector produced by PHOENIX CONTACT. It has a rated current of 12A, a rated voltage of 250V, a pin spacing of 5mm, 5 pins and a black color. It can be installed by soldering.

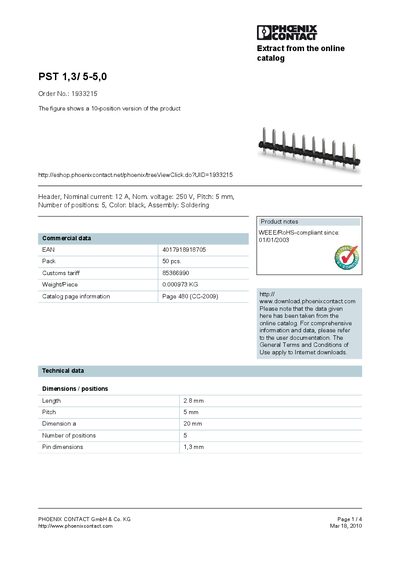

The PST 1,3/5-5,0 is a 5‑position, 5 mm pitch connector rated for 12 A nominal current and 250 V nominal voltage. The handbook provides commercial data, dimensions, pin size, weight, and compliance information.
Key specifications such as length (2.8 mm), overall dimension (20 mm), and pin diameter (1.3 mm) are listed, along with certifications (UL, CUL, EN‑VDE) and packaging details (50 pcs per pack, EAN 4017918918705).
| Pitch | 5 mm |
|---|---|
| Number of positions | 5 |
| Length | 2.8 mm |
| Overall dimension (a) | 20 mm |
| Pin diameter | 1.3 mm |
| Weight per piece | 0.000973 kg |
| EAN | 4017918918705 |
| Packaging | 50 pcs per pack |
The pitch is 5 mm.
It has 5 positions.
