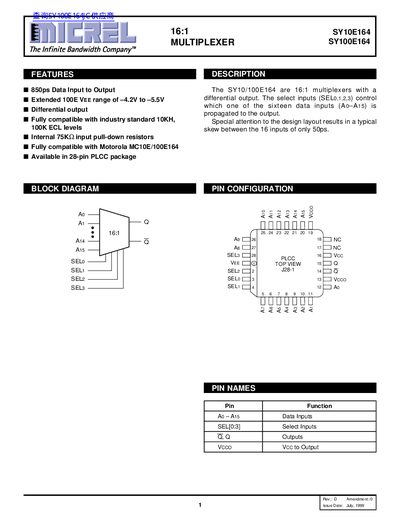

SY10/100E164 is a 16:1 multiplexer with a differential output. The select inputs (SEL0,1,2,3) control which one of the sixteen data inputs (A0–A15) is propagated to the output. Special attention to the design layout results in a typical skew between the 16 inputs of only 50ps.
The Micrel SY10E164 and SY100E164 are 16:1 multiplexers offering 850 ps data‑input‑to‑output propagation delay and a differential output voltage range of –4.2 V to –5.5 V. They are supplied in a 28‑pin PLCC package and include internal 75 kΩ pull‑down resistors on each input.
The datasheet provides detailed DC and AC electrical characteristics, pin assignments, ordering codes, and mechanical dimensions. Typical power‑supply current is 59 mA, and within‑device skew is limited to 50 ps.
| Propagation delay (data input to output) | 850 ps |
|---|---|
| Internal input pull‑down resistance | 75 kΩ |
| Package type | 28‑pin PLCC |
| tPHL (typical) | 600 ps |
| Within‑device skew (typical) | 50 ps |
| Rise/Fall time (typical) | 400 ps |
The device has a typical propagation delay of 850 ps from any data input to the output.
The typical within‑device skew is 50 ps.
Both parts are supplied in a 28‑pin PLCC package.
