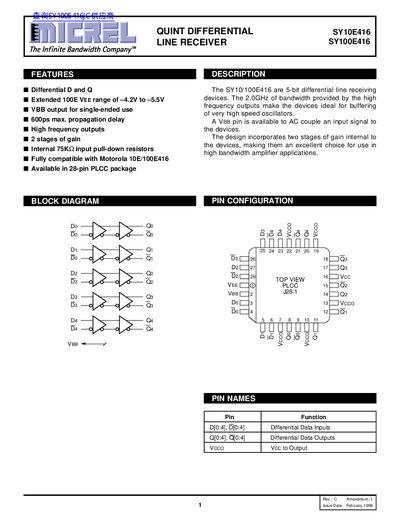

The SY10/100E416 are 5-bit differential line receiving devices. The 2.0GHz of bandwidth provided by the high frequency outputs make the devices ideal for buffering of very high speed oscillators. A VBB pin is available to AC couple an input signal to the devices. The design incorporates two stages of gain internal to the devices, making them an excellent choice for use in high bandwidth amplifier applications.
The SY10E416 and SY100E416 are 5‑bit differential line receivers offering a wide bandwidth of up to 2.0 GHz, dual‑stage gain, and a VBB pin for AC‑coupled single‑ended operation. They feature internal 75 kΩ pull‑down resistors, a VBB output, and are supplied in a 28‑pin PLCC package.
Electrical specifications include a maximum propagation delay of 600 ps, VEE output reference voltages from –1.38 V to –1.27 V, and detailed DC and AC characteristics across temperature ranges. Ordering codes and mechanical dimensions are also provided for both device variants.
| Bandwidth | 2.0 GHz |
|---|---|
| Maximum propagation delay | 600 ps |
| Package type | 28‑pin PLCC |
The maximum propagation delay is 600 ps.
They are supplied in a 28‑pin PLCC package.
