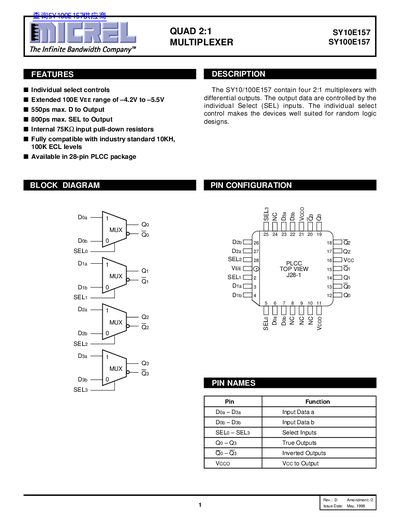

The SY10E157 is a quad 2:1 multiplexer with differential outputs manufactured by Micrel. It features individual select controls and is suitable for random logic designs.
The SY10E157 and SY100E157 are quad 2:1 multiplexers that provide differential outputs. Each channel has its own select input, making the devices suitable for random‑logic designs. They are supplied in a 28‑pin PLCC (J28‑1) package.
Key electrical characteristics include a VEE range of –4.2 V to –5.5 V, internal 75 kΩ pull‑down resistors, and propagation delays up to 550 ps (tPLH) and 800 ps (SEL to output). Ordering codes differentiate commercial and industrial versions.
| Package | 28‑pin PLCC (J28‑1) |
|---|---|
| VEE Voltage Range | –4.2 V to –5.5 V |
| Internal Input Pull‑Down Resistor | 75 kΩ |
The VEE range is –4.2 V to –5.5 V.
They are supplied in a 28‑pin PLCC (J28‑1) package.
