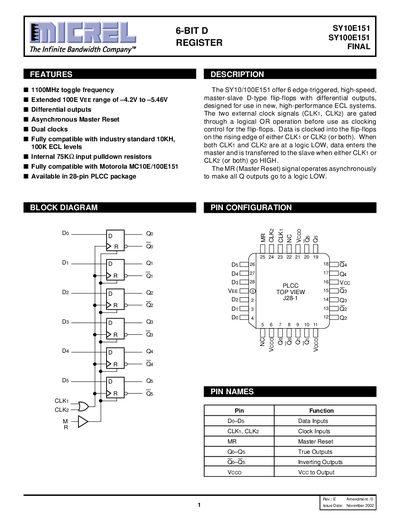

The document introduces a product called SY10/100E151. It is a high-speed, edge-triggered 6-bit D-type register with differential outputs. The product features include: toggle frequency of 1100MHz, VEE range of -4.2V to -5.46V, asynchronous master reset, dual clocks, full compatibility with industry standard 10KH, 100K ECL levels, internal 75KΩ input pulldown resistors, full compatibility with Motorola MC10E/100E151, and available in 28-pin PLCC package.
The SY10E151 and SY100E151 are 6‑bit, high‑speed, master‑slave D‑type flip‑flops with differential outputs, dual clock inputs (CLK1, CLK2), and an asynchronous master reset. They are designed for high‑performance ECL systems and support industry‑standard 10KH/100K ECL levels.
The document lists pin functions, truth tables for asynchronous and synchronous operation, DC and AC electrical characteristics (toggle frequency up to 1100 MHz, propagation delays, supply currents), package dimensions for the 28‑lead PLCC (J28‑1), and ordering codes for tape‑and‑reel or industrial packaging.
| Toggle Frequency | 1100 MHz (up to 1400 MHz) |
|---|---|
| Number of Flip‑Flops | 6 |
| Propagation Delay (tPHL) | 475 – 800 ps |
| Rise/Fall Time | 300 – 700 ps |
| Supply Current (10E) | 65 – 78 mA |
| Package | 28‑lead PLCC (J28‑1) |
The device operates at a toggle frequency of 1100 MHz, with a maximum of 1400 MHz.
It contains six edge‑triggered flip‑flops.
The device has two external clock inputs, CLK1 and CLK2.
The parts are supplied in a 28‑lead PLCC (J28‑1) package.
