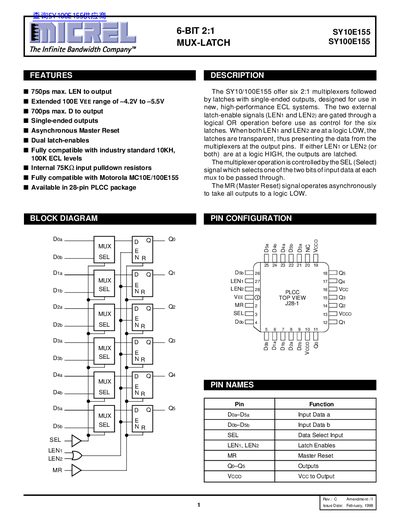

SY10/100E155 is a 6-bit 2:1 multiplexer with single-ended outputs, designed for use in new, high-performance ECL systems.
The SY10E155 and SY100E155 are 6‑bit 2:1 multiplexers with latch outputs, designed for high‑performance ECL systems. They include dual latch‑enable inputs, asynchronous master reset, and single‑ended outputs, and are compatible with standard 10K/100K ECL levels.
The document lists pin assignments, truth tables, DC and AC electrical specifications, package dimensions (28‑pin PLCC), and ordering codes, making it a comprehensive reference for designers and engineers.
| VEE voltage range | -4.2 V to -5.5 V |
|---|---|
| Package type | 28‑pin PLCC |
| Number of multiplexers | Six 2:1 multiplexers |
The VEE range is –4.2 V to –5.5 V.
It contains six 2:1 multiplexers.
It is available in a 28‑pin PLCC package.
