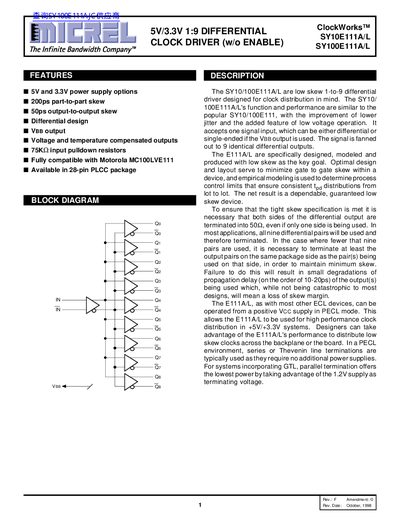

This document describes the features and characteristics of the SY10/100E111A/L 1:9 differential clock driver, which supports 5V and 3.3V power supply options and offers low jitter and low voltage operation.
The SY10E111A/L and SY100E111A/L are low‑skew 1‑to‑9 differential clock drivers designed for high‑performance clock distribution. They operate from either a 5 V or 3.3 V supply and provide nine identical differential outputs with tight skew specifications.
The document lists detailed electrical parameters, pin assignments, propagation‑delay figures, and ordering codes for both commercial and industrial temperature ranges. It also includes recommended termination practices and package information for the 28‑lead PLCC (J28‑1) form factor.
| Supply Voltage Options | 5 V / 3.3 V |
|---|---|
| Part‑to‑Part Skew | 200 ps |
Both devices can be powered from either a 5 V or a 3.3 V supply.
The part‑to‑part skew is specified as 200 ps.
Both sides of each differential output should be terminated into 50 Ω to maintain the specified skew.
