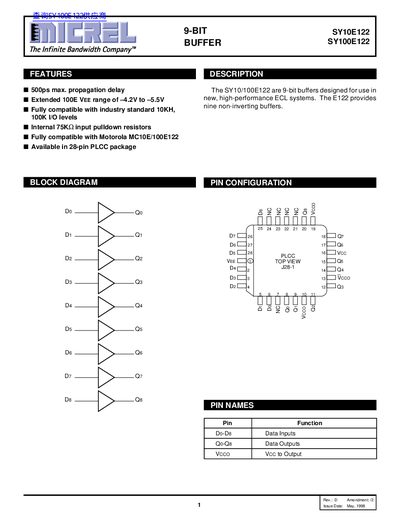

The SY10/100E122 are 9-bit buffers designed for use in new, high-performance ECL systems. The E122 provides nine non-inverting buffers.
The Micrel SY10E122 and SY100E122 are 9‑bit buffer devices intended for high‑performance ECL systems. They feature a propagation delay of up to 500 ps, internal 75 kΩ input pulldown resistors, and are supplied in a 28‑pin PLCC package.
The document provides detailed DC and AC electrical characteristics, pin assignments, mechanical dimensions, and ordering codes for both commercial and industrial versions. It also includes a top‑view diagram and notes on package tolerances.
| Input HIGH current (IH) | 200 µA |
|---|---|
| Package type | 28‑pin PLCC |
The device is available in a 28‑pin PLCC package.
