SY10E112 is a high-performance ECL driver from Micrel. The device has a maximum propagation delay of 600ps, a VEE range of -4.2V to -5.5V, is compatible with industry standard 10KH and 100K I/O levels, has internal 75KΩ input pull-down resistors, and is compatible with Motorola MC10E/100E112. The device is available in a 28-pin PLCC package.
The SY10E112 and SY100E112 are quad drivers designed for high‑performance ECL systems. They provide two pairs of OR/NOR outputs per gate, a common buffered enable input, and a data input that can serve as an ECL memory address fan‑out driver.

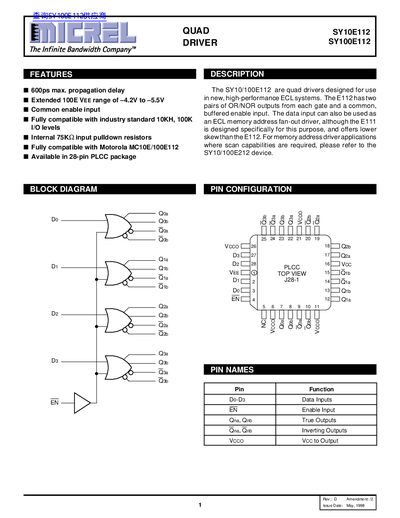

The document includes features, pin configuration, block diagram, truth table, electrical characteristics, and ordering information for the devices, which are available in a 28‑lead PLCC (J28‑1) package.
| Propagation Delay (typical) | 400 ps |
|---|---|
| Input HIGH Current (typical) | 5 µA |
| Power Supply Current (typical) | 56 mA |
| Package | 28‑lead PLCC (J28‑1) |
The typical propagation delay to output is 400 ps.
The typical input high current is about 5 µA.
Both devices are supplied in a 28‑lead PLCC (J28‑1) package.
