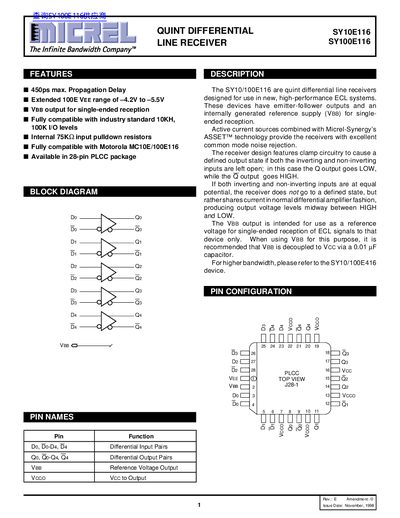

The SY10/100E116 are quint differential line receivers designed for use in new, high-performance ECL systems. These devices have emitter-follower outputs and an internally generated reference supply (VBB) for single-ended reception.
The SY10E116 and SY100E116 are quint differential line receivers designed for high‑performance ECL systems. They feature emitter‑follower outputs, an internally generated reference supply (VBB) for single‑ended reception, and active current sources with Micrel‑Synergy’s ASSET™ technology for excellent common‑mode noise rejection.
The document lists key specifications such as propagation delay, voltage ranges, input pull‑down resistors, and power‑supply currents, as well as pin configurations, ordering codes for commercial and industrial packages, and mechanical dimensions.
| Maximum propagation delay | 450 ps |
|---|---|
| VEE voltage range | -4.2 V to -5.5 V |
| Input pull‑down resistor | 75 kΩ |
| Power‑supply current (10E) | 29–35 mA |
| Input sensitivity (VPP) | 150 mV |
The maximum propagation delay is 450 ps.
They support a VEE range from –4.2 V to –5.5 V.
Commercial packages use codes ending in JC (e.g., SY10E116JC), while industrial packages use codes ending in JI (e.g., SY10E116JI).
Each input includes a 75 kΩ pull‑down resistor.
