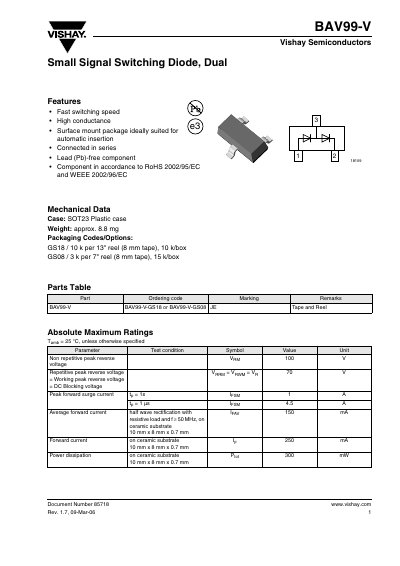

BAV99-V is a dual small signal switching diode with fast switching speed and high conductance. It is ideally suited for automatic insertion with a surface mount package. It is lead (Pb)-free and compliant with RoHS 2002/95/EC and WEEE 2002/96/EC standards.
The BAV99-V is a dual small‑signal switching diode offered by Vishay Semiconductors. It features fast switching speed, high conductance, a lead‑free SOT‑23 surface‑mount package, and compliance with RoHS and WEEE standards.
The document lists electrical ratings such as a 100 V non‑repetitive reverse voltage, 0.855 V forward voltage at 10 mA, and a 300 mW power dissipation limit, as well as thermal data like a 430 K/W junction‑to‑ambient resistance. Mechanical data, packaging options, and regulatory statements are also included.
| Non‑repetitive peak reverse voltage | 100 V |
|---|---|
| Repetitive peak reverse voltage | 70 V |
| Forward voltage at 10 mA | 0.855 V |
| Peak forward surge current (1 s) | 1 A |
| Average forward current (1 µs) | 4.5 A |
| Power dissipation | 300 mW |
| Junction‑to‑ambient thermal resistance | 430 K/W |
| Diode capacitance | 1.5 pF |
| Reverse recovery time | 6 ns |
| Package type | SOT‑23 |
| Weight | 8.8 mg |
The non‑repetitive peak reverse voltage is rated at 100 V.
Yes, it is a lead‑free component that meets RoHS 2002/95/EC requirements.
It is supplied in a plastic SOT‑23 case.
Approximately 0.855 V.
