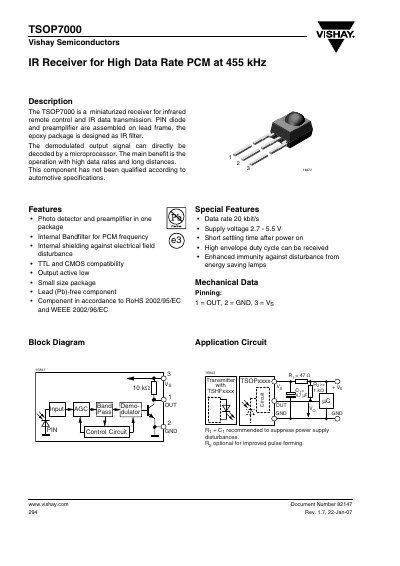

TSOP7000 is a miniaturized receiver for infrared remote control and IR data transmission manufactured by Vishay Semiconductors. It integrates a PIN diode and a preamplifier, and the epoxy package is designed as an IR filter. The demodulated output signal can be directly decoded by a microprocessor. The main benefit is its operation with high data rates and long distances. It has not been qualified according to automotive specifications.
The TSOP7000 is a miniature infrared receiver designed for remote‑control and data‑transmission applications. It integrates a photodiode and pre‑amplifier in a single package with an internal band‑filter for the 455 kHz PCM carrier frequency. The device offers TTL and CMOS compatible outputs, low‑level active‑low signaling, and a small, lead‑free, RoHS‑compliant package.
The document provides absolute maximum ratings, electrical and optical characteristics, typical performance curves, recommended data formats, and compliance information. It also includes mechanical pinout details, supply current specifications, and environmental limits for reliable integration into electronic systems.
| Supply Voltage | 2.7 V – 5.5 V |
|---|---|
| Output Current | 15 mA |
| Power Consumption | 30 mW |
| Data Rate | 20 kbit/s |
| Operating Temperature Range | -25 °C to +85 °C |
The device operates with a supply voltage between 2.7 V and 5.5 V.
The maximum output current is 15 mA.
It supports a data rate of up to 20 kbit/s.
Yes, the component is lead‑free and complies with RoHS 2002/95/EC.
