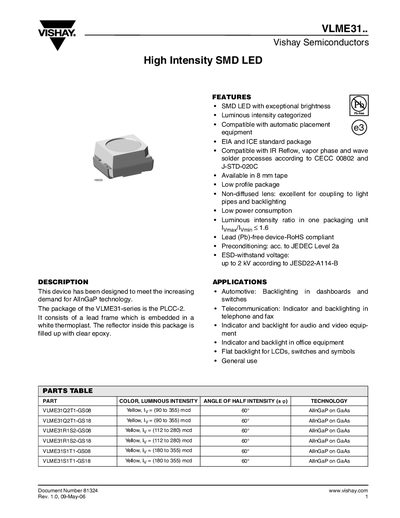

This document describes the features and characteristics of Vishay Semiconductors VLME31 series high-intensity SMD LED, including brightness, package standard, compatibility, etc. This product is suitable for automotive, communication, audio and video equipment, office equipment, etc.
The VLME31 series are high‑intensity surface‑mount LEDs in a PLCC‑2 package, offering bright yellow light for automotive, telecom and back‑lighting applications. The document provides electrical, optical and mechanical characteristics, as well as recommended soldering and storage procedures.
Key information includes absolute maximum ratings, luminous intensity ranges, wavelength data, tape‑and‑reel packaging dimensions, and moisture‑sensitive handling guidelines.
| Package type | PLCC‑2 |
|---|---|
| Reverse voltage (Vr) | 5 V |
| Power dissipation (Pmax) | 80 mW |
| Luminous intensity (typical) | 90–355 mcd (yellow) |
| Storage temperature (dry bag) | 10 °C to 30 °C |
The recommended storage temperature is 10 °C to 30 °C.
The maximum reverse voltage is 5 V.
The LEDs are supplied in a PLCC‑2 package.
