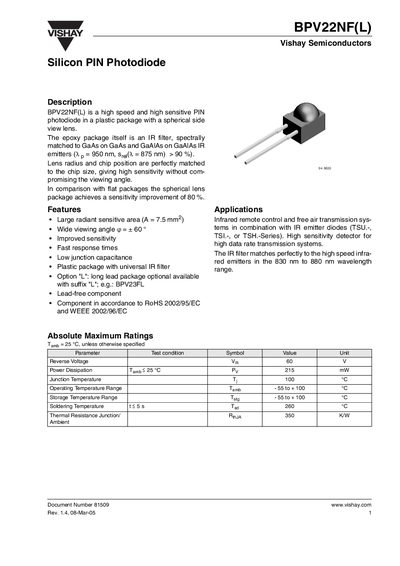

BPV22NF(L) is a high-speed and high-sensitive PIN photodiode in a plastic package with a spherical side view lens. It features a large radiant sensitive area, wide viewing angle, improved sensitivity, fast response times, low junction capacitance, and a plastic package with a universal IR filter.
The BPV22NF(L) is a high‑speed, high‑sensitivity silicon PIN photodiode packaged in a plastic body with a spherical side‑view lens that also acts as an IR filter. The lens and chip are matched to provide a wide viewing angle of about 60° and improved sensitivity compared with flat‑package devices.
The device is intended for infrared remote‑control and free‑air transmission systems, especially in the 830‑880 nm wavelength range. Key specifications include a reverse voltage rating of 60 V, typical forward voltage of 1.3 V at 50 mA, peak spectral sensitivity at 940 nm, and a rise time of 100 ns. Package dimensions and mechanical drawings are provided for board layout.
| Reverse Voltage (V_R) | 60 V |
|---|---|
| Junction Temperature (T_J) | 100 °C |
| Operating Temperature Range | -55 °C to +100 °C |
| Peak Sensitivity Wavelength | 940 nm |
| Quantum Efficiency at 950 nm | 90 % |
| Soldering Temperature | 260 °C (max, <5 s) |
The device is rated for a reverse voltage of 60 V.
Peak spectral sensitivity occurs at 940 nm.
The recommended soldering temperature is up to 260 °C for less than 5 seconds.
